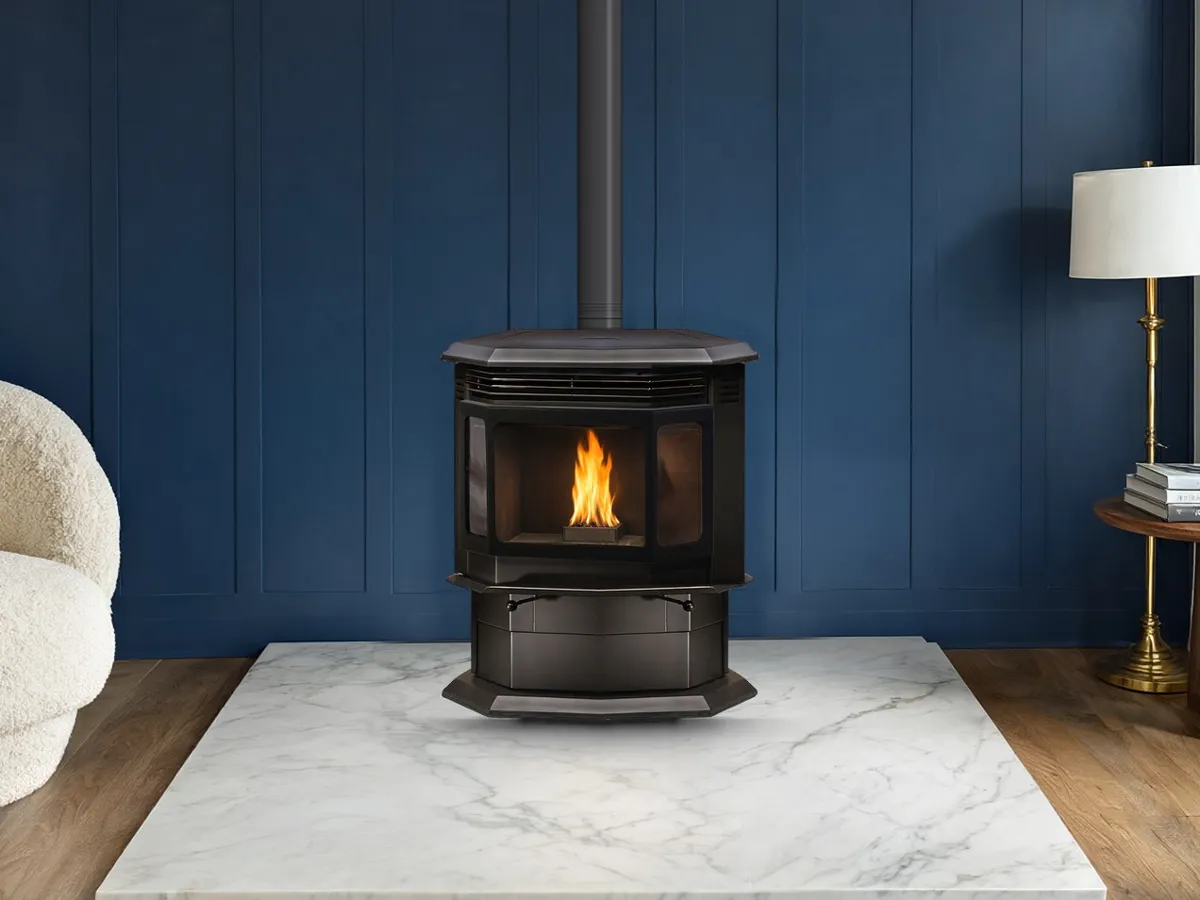

Forge & Flame Classic Bay 1200 pellet stove

Forge & Flame Classic Bay 1200 Pellet Stove

Pellet Stove · Featuring Quadra-Fire Technology

Forge & Flame Classic Bay 1200

Heritage: Quadra-Fire

A freestanding pellet stove with a bay of glass and a big 80 lb hopper.

Heating Capacity1,050–2,050 sq ft
Efficiency73% (higher heating value)
Hopper Size80 lb
FuelPellet
ControlsDigital wall thermostat with three heat settings; remote optional
FanIncluded

Figures per the manufacturer. Real-world results depend on your home, fuel, and install.

Not every dealer carries every model. We'll show you what's available near you, the local dealers who can help, and a free Project Guide you can take to any dealer.

See the Classic Bay 1200 on the manufacturer's site: forgenflame.com/products/quadra-fire-classic-bay-1200-pellet-stove ↗

On This Page

  1. Who It's For
  2. What Makes It Special
  3. Possible Downsides
  4. Manuals and Documents
  5. Frequently Asked Questions

Who It's For

A stove can heat well and still be dull to look at. The fire should be worth watching. You need a freestanding pellet stove with real heat and a good view of the flame. If you want steady pellet heat for a large living area and a fire you can see from several seats, the Forge & Flame Classic Bay 1200 fits. It features Quadra-Fire burn technology. Choose it and the stove becomes part of the room.

What Makes It Special

The glass wraps the front like a bay window, so the fire shows from the sides as well as straight on.

An 80 lb hopper means fewer fills. A digital wall thermostat is included, and the stove moves between three heat settings to hold your temperature. Quadra-Fire rates it to heat 1,000 to 2,700 square feet; in most homes, expect 1,050–2,050 sq ft, depending on climate and layout.

Possible Downsides

If you want a pellet stove that heats a big room and gives you a real view of the fire, the Forge & Flame Classic Bay 1200 is the right decision. The stove ends up as the first thing guests ask about.

Add a three-piece ceramic log set, a remote control, an outside air kit, a flue adapter, or top vent adapters.

Manuals and Documents

Documents open on the manufacturer's website. Your installer follows the manual for your exact install.

Frequently Asked Questions

How much space can the Forge & Flame Classic Bay 1200 heat?

Quadra-Fire rates the Classic Bay 1200 for 1,000 to 2,700 sq ft, but in most homes you should expect 1,050–2,050 sq ft depending on climate and layout. Input runs from 15,900 to 41,100 BTU per hour, efficiency is 73% on the higher heating value, and it's EPA certified at 1.0 g/hr.

What makes the Classic Bay 1200's glass different?

The glass wraps around the front like a bay window, so you can see the fire from the sides as well as straight on, from several seats in the room. For the look of burning logs, you can add the optional three-piece ceramic log set.

How do the thermostat and heat settings work on the Classic Bay 1200?

The included digital wall thermostat lights the stove when it calls for heat and shuts it off when the room is warm. Each start runs on high for about 4 minutes 15 seconds, then drops to your low, medium, or high setting, and a fan speed switch gives you six blower speeds. A remote is optional.

How big is the Classic Bay 1200's hopper, and what feeds the fire?

The hopper holds 80 lb of premium wood pellets, which means fewer fills, and the stove burns 1.9 to 5.3 lb per hour depending on the setting. It uses Quadra-Fire's patented jam-free feed system, a cast iron firepot, and an aluminum heat exchanger.

What power does the Classic Bay 1200 need, and what happens after an outage?

It needs house power: it plugs into a standard 115-volt outlet and draws 1.88 amps while running, so it won't make heat during an outage. When power comes back, it restarts on its own without priming as long as the thermostat is still calling for heat.

Will the Classic Bay 1200 fit in an alcove, and what floor protection does it need?

Yes. An alcove must be at least 44 inches high and 40-1/2 inches wide, no more than 36 inches deep, with 6 inches to the side walls. The Type I floor protector extends at least 6 inches in front of the glass and 6 inches past both sides of the loading door.

Is the Classic Bay 1200 approved for mobile homes?

Yes, when it isn't in a sleeping room. An outside air kit (part 811-0570 or 811-0872) must be installed, the stove must be grounded to the frame, and only listed Class L or PL pellet vent can be used, in 3-inch or 4-inch size.

What cleaning schedule does the Classic Bay 1200 need?

Clean the fire pot every 3 bags of hardwood pellets or 5 bags of softwood, and empty the ash pan weekly or every 5 bags. Heavier jobs come monthly or every 25 to 50 bags, and the manual recommends annual service by a qualified technician.

The Quadra-Fire Story

Quadra-Fire was founded by Alan Trusler and Dan Henry as Aladdin Steel Products near Colville, Washington, in 1978–79. Its Quad-Burn system, introduced in 1986, burns wood smoke in four zones without a catalytic combustor. HON Industries (now HNI) bought the company in 1998, and since 2023 Quadra-Fire stoves have been sold under the Forge & Flame name, with the original model names.
